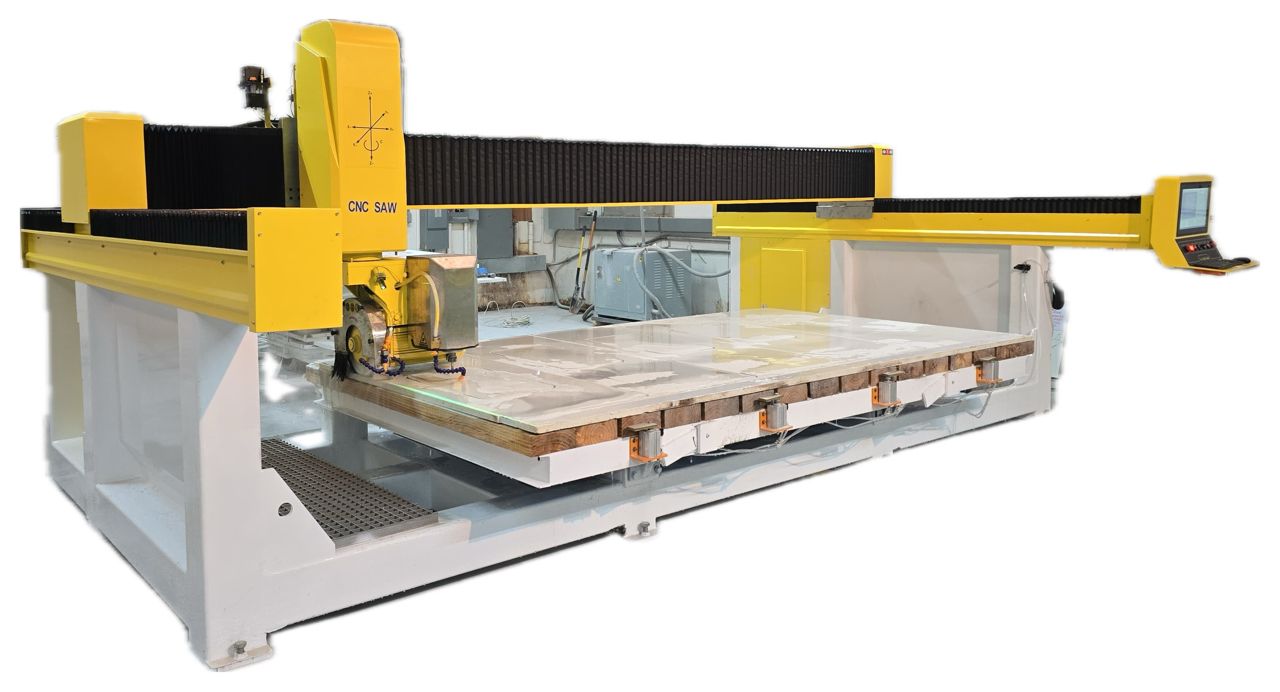

4+1 CNC Monoblock
Monoblock
4 Axis (45° Cuts) + Milling Bit (for Round corners and Sinks)
220v 3 Phase
Add to cart
Product Description
CNC CAD software mapping.
Open sinkholes and profiling inside and outside .
Table can be titled up 85 degrees by hydraulic for loading the slab.
Simple and easy to use, intelligent , convenient, efficient and low consumption.

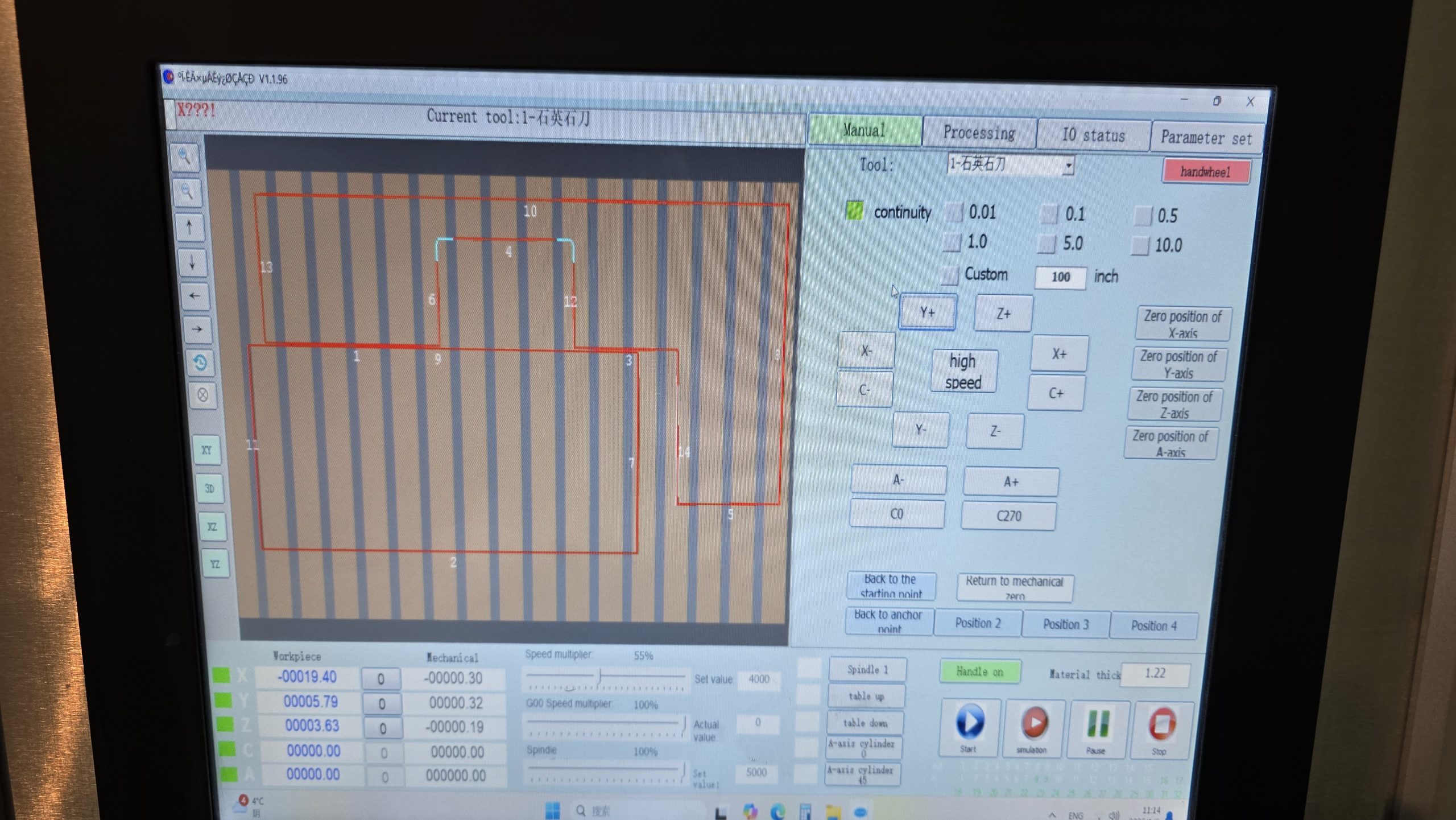

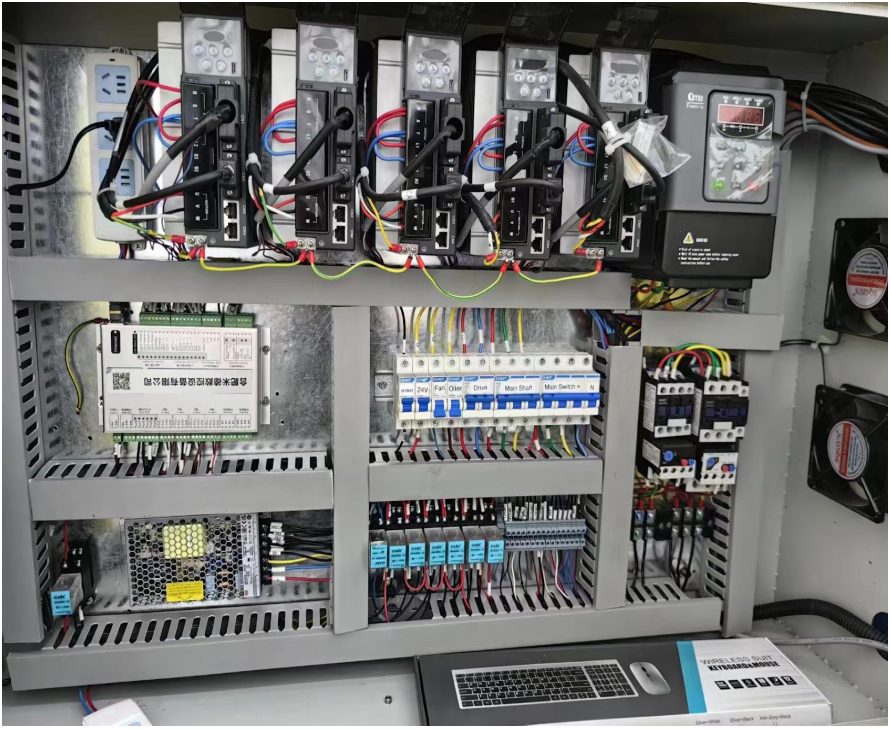

Adopt CNC control system , servo motor drive, high efficiency and stability , 18.5inch computer operation ,USB , ethernet interface.
Has the function of remote operation and diagnosis through the internet, which is convenient and quick.
Spindle is driven by a 15KW motor ,which has the characteristics of low energy consumption and high power.
Table can be titled up to 85 degrees to load slabs.

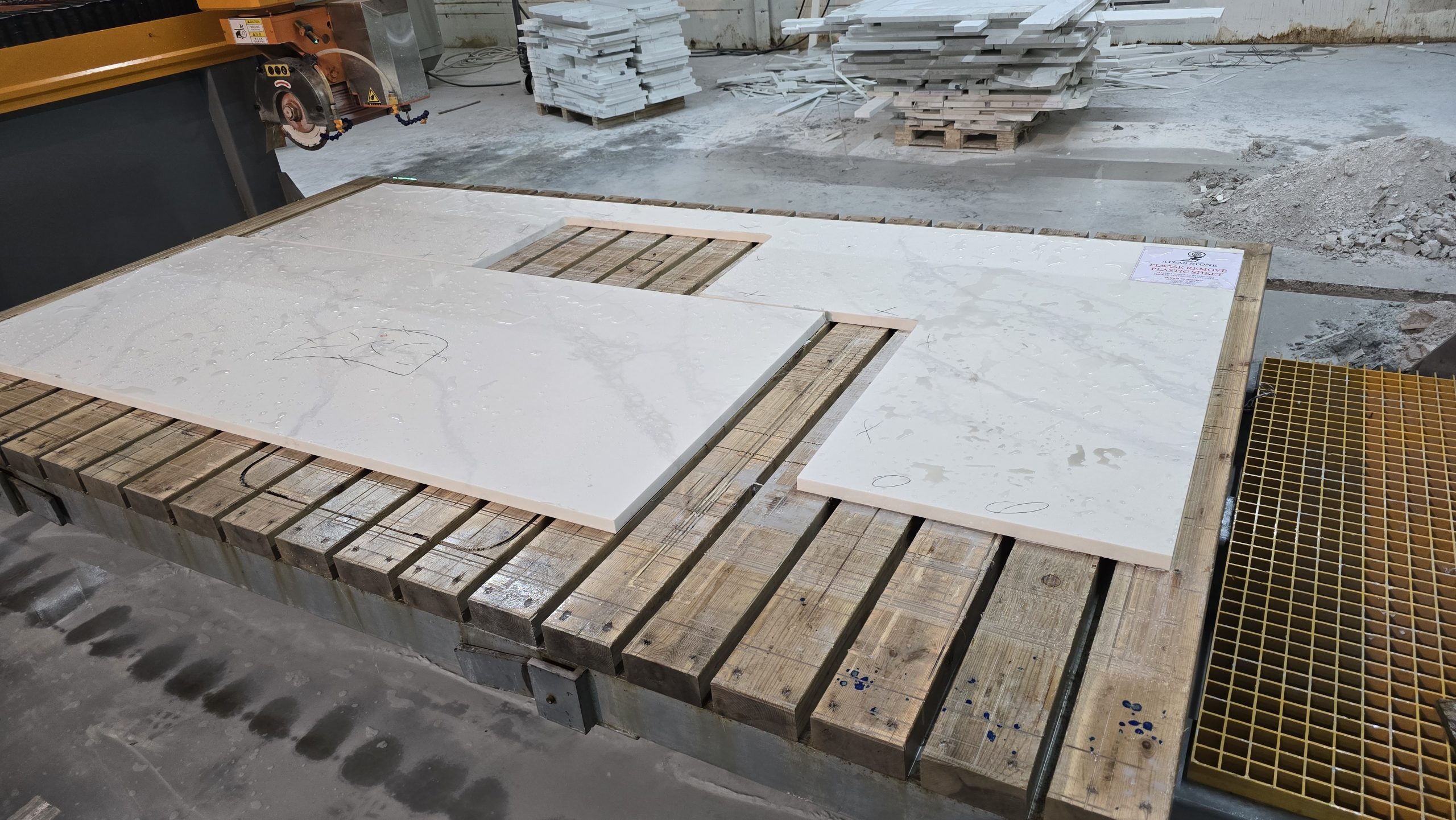

It can cut any material ( such as engineered stone , granite, porcelain slab ,dekton, marble ,ceramic and quartz )
Travel | 3 axis 3200*2000*400mm C axis ±360° A axis 0/45° |
| Motor & Drive | Serve motor and drive |
Turning Table | Size 3200×2000mm Flip angle 0-85° |
Saw Blade | Diameter 14 – 15 Inch |
Spindle | Power 5.5kw
Rotating speed 18000 – 24000rpm |
Motor power | 15KW |
| Weight Approx.. | 5000kgs/1200 pounds |
Motor speed | 3300rpm |
Voltage | 220V/3P/50HZ |
Total Power | 18.5 kw |
